Ethernet

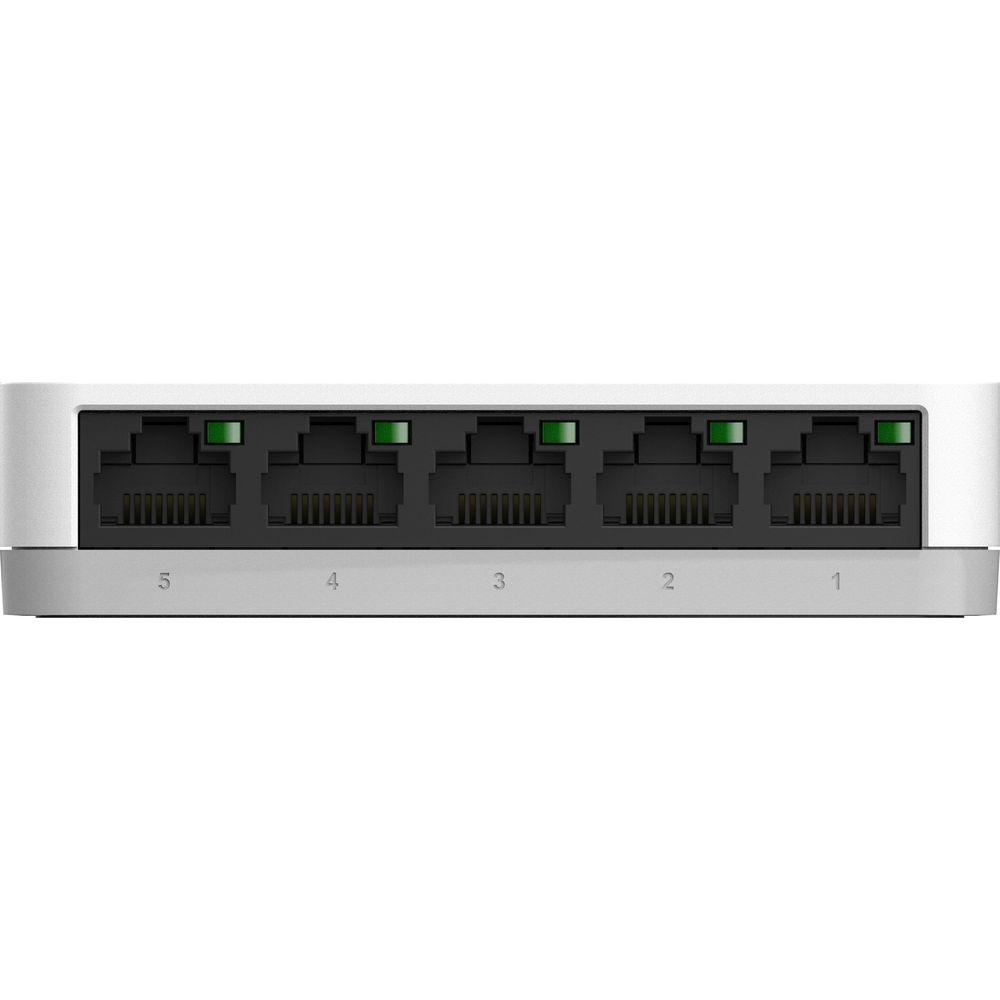

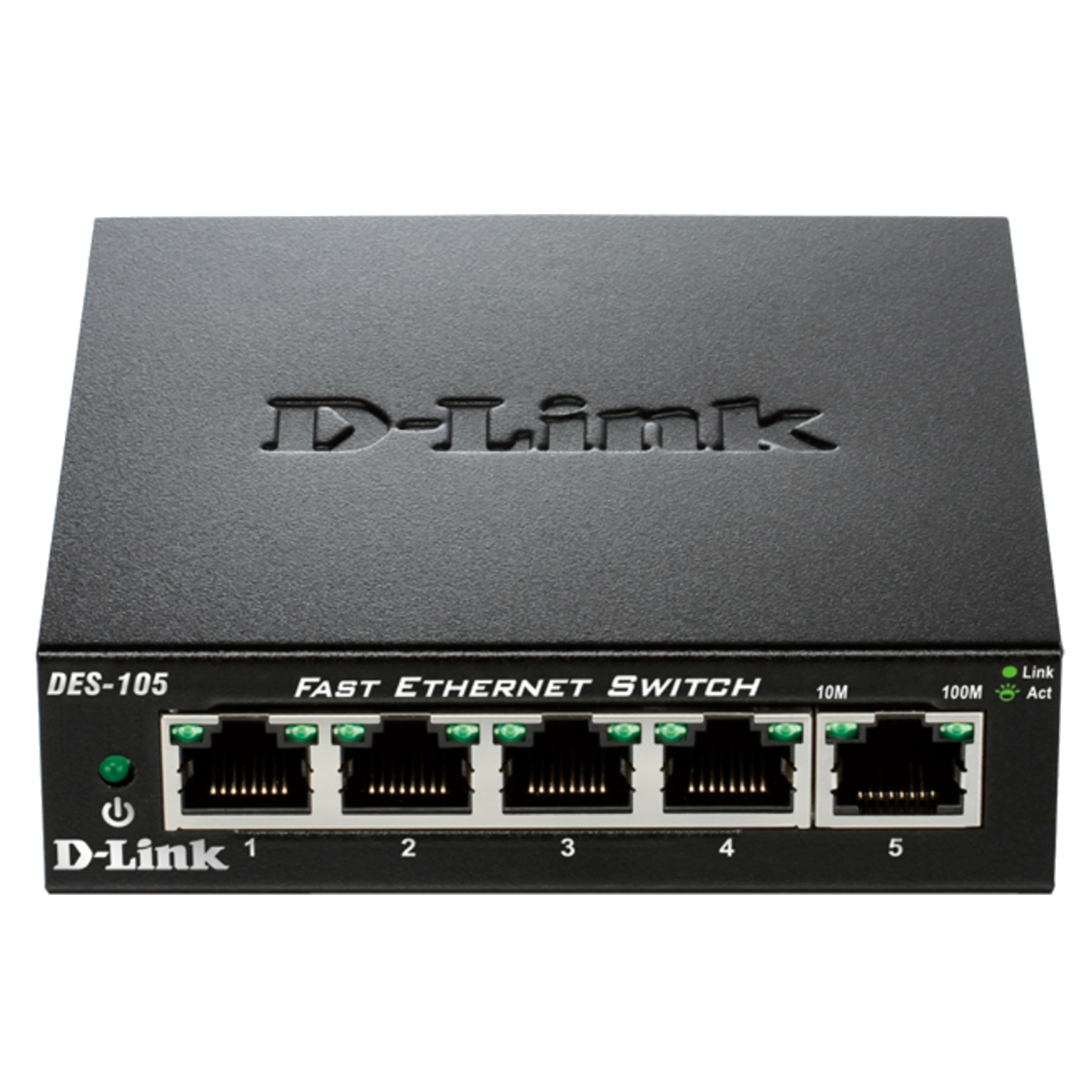

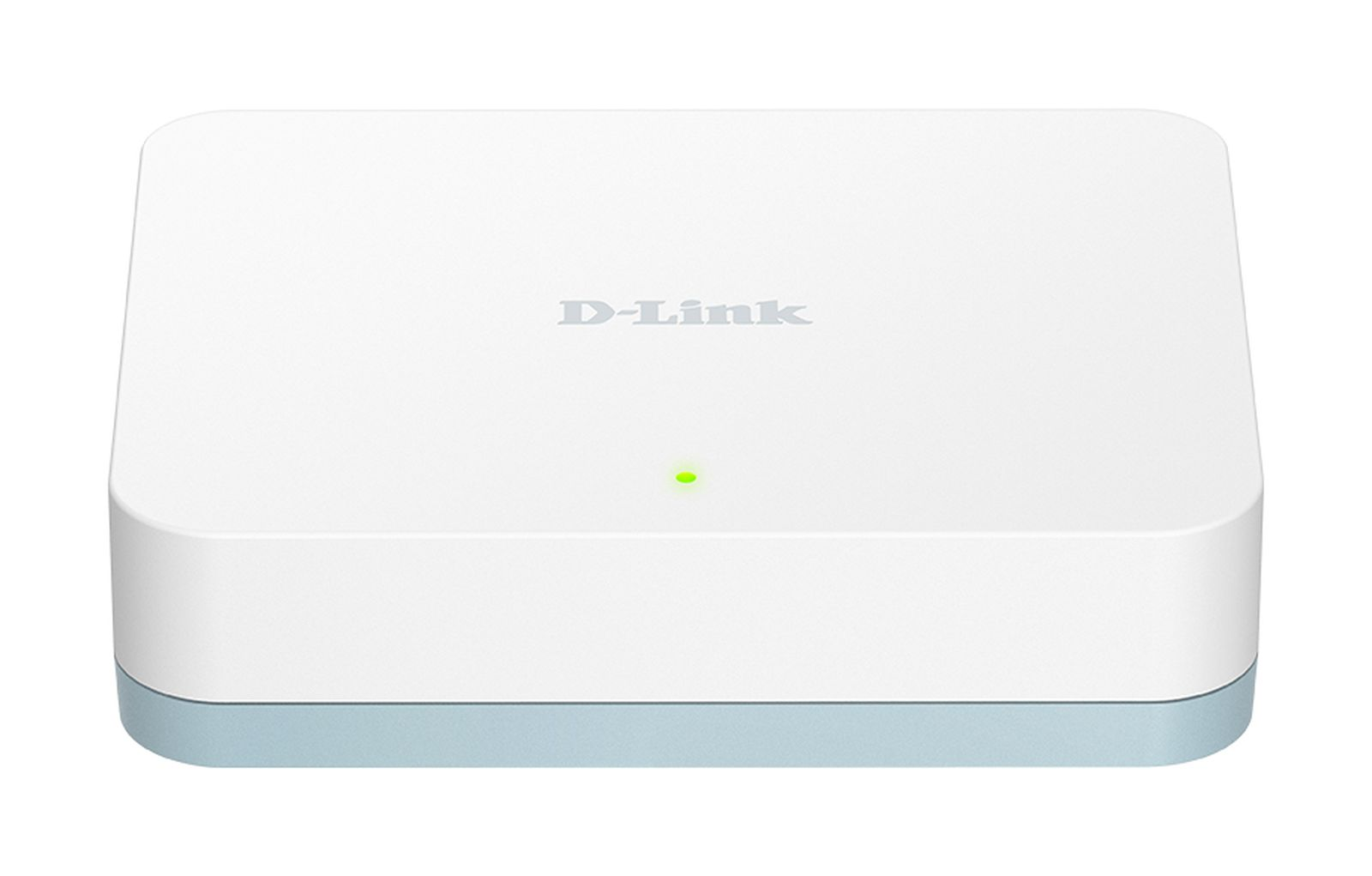

SWITCH

5

10/100 Mbit / s

Standards: - IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) - IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) - ANSI/IEEE 802.3 NWay auto-negotiation - IEEE 802.3x Flow Control - IEEE 802.1p QoS - IEEE 802.3az Energy-Efficient Ethernet (EEE) Protocol: - CSMA/CD Data Transfer Rates Ethernet: - 10 Mbps (half duplex) - 20 Mbps (full duplex) Fast Ethernet: - 100 Mbps (half duplex) - 200 Mbps (full duplex) Network Cables 10BASE-T: - UTP CAT 3, 4, 5/5e (100 m max.) - EIA/TIA-586 100-ohm STP (100 m max.) 100BASE-TX: - UTP CAT 5/5e (100 m max.) - EIA/TIA-568 100-ohm STP (100 m max.) RAM Buffer: 384 KBytes per device Layer2 Features: MAC address table: 2K Auto MDI/MDIX crossover for all ports Store-and-forward switching scheme Full/half-duplex for Ethernet/Fast Ethernet speeds Jumbo Frames: 2047 Bytes QoS 2 Queues, strict mode DC Input External 5 V/1 A Level “V” Power Adapter Power Consumption Power On (Standby): - DC input: 0.5 watts - AC input: 1.0 watts Maximum: - DC input: 2.01 watts - AC input: 3.10 watts Certificazioni: - FCC Class B - ICES-003 Class B - CE Class B - C-Tick Class B - VCCI Class B - cUL - CB

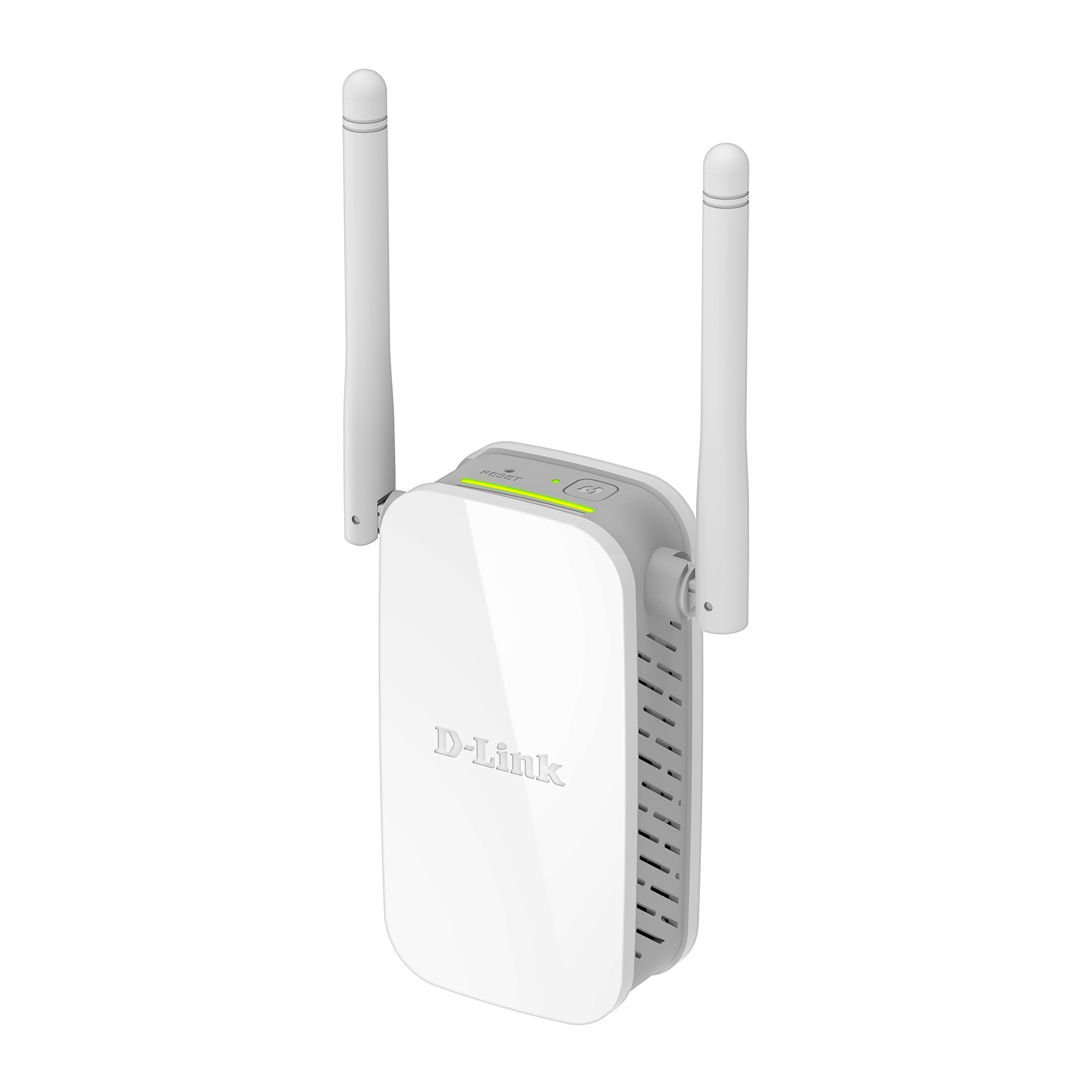

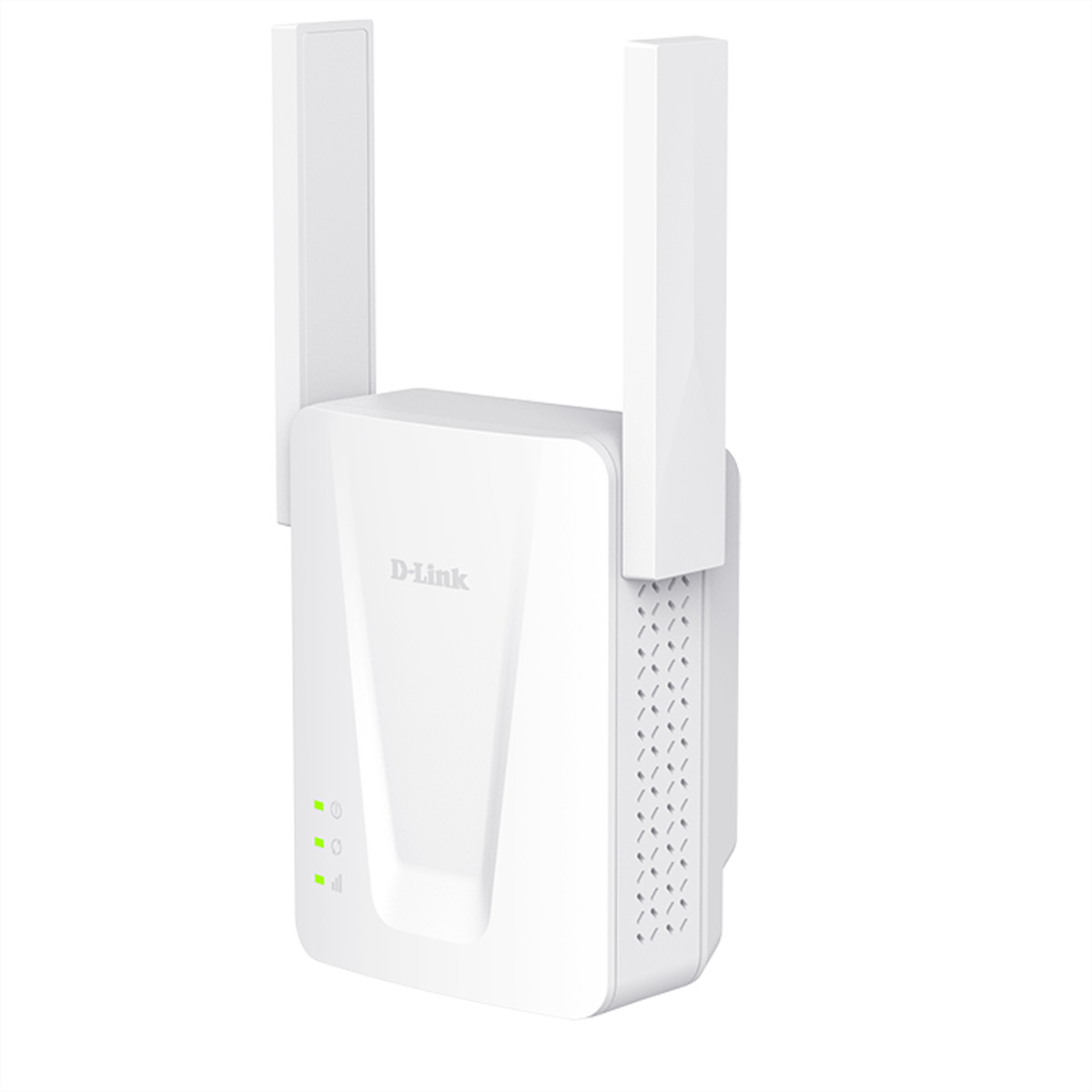

Range Extender
